New

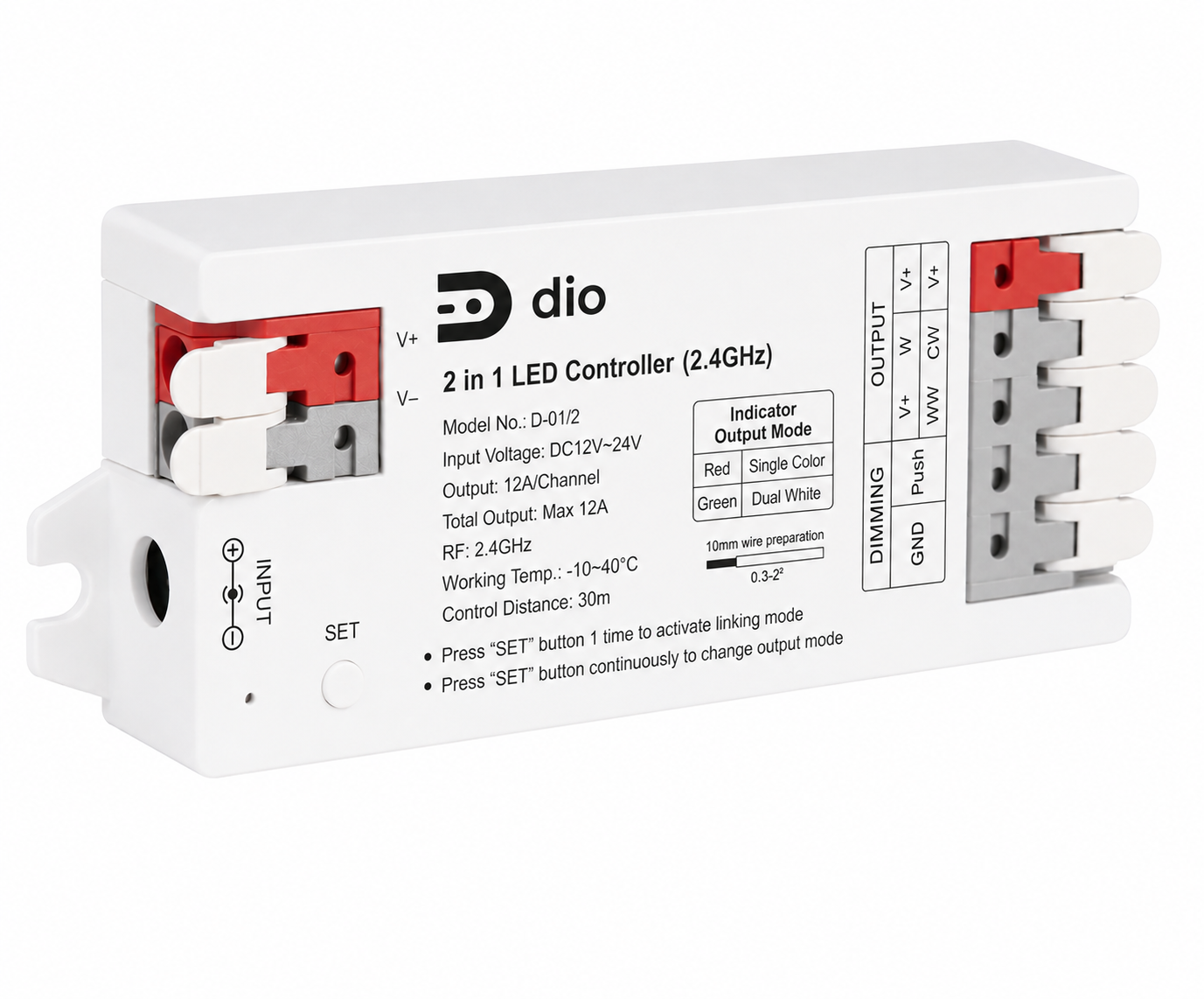

Controller for 1-zone single/CCT color LED strip (ECO)
Code D-01/2 · CCT controllers
- 12/24 V Voltage
- 144 W Power
- IP20 Ingress protection
- 5 years Warranty

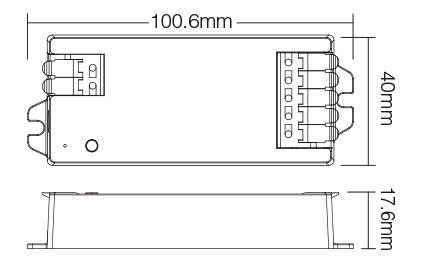

- 100.6 × 40 × 17.6 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 127 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Working distance
- 30m
- Voltage
- 12/24 V
- Power
- 144 W
- Input voltage
- DC 12–24 V
- Output current
- 12 A per channel, 12 A total
- Max load
- 144 W @ 12 V, 288 W @ 24 V
- Output mode
- Single colour or CCT (switchable)
- Output connection
- Common anode
- Control signal
- 2.4 GHz RF
Environment and compliance
- Ingress protection
- IP20
- Working temperature
- −10…+40 °C
- Warranty
- 5 years
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
