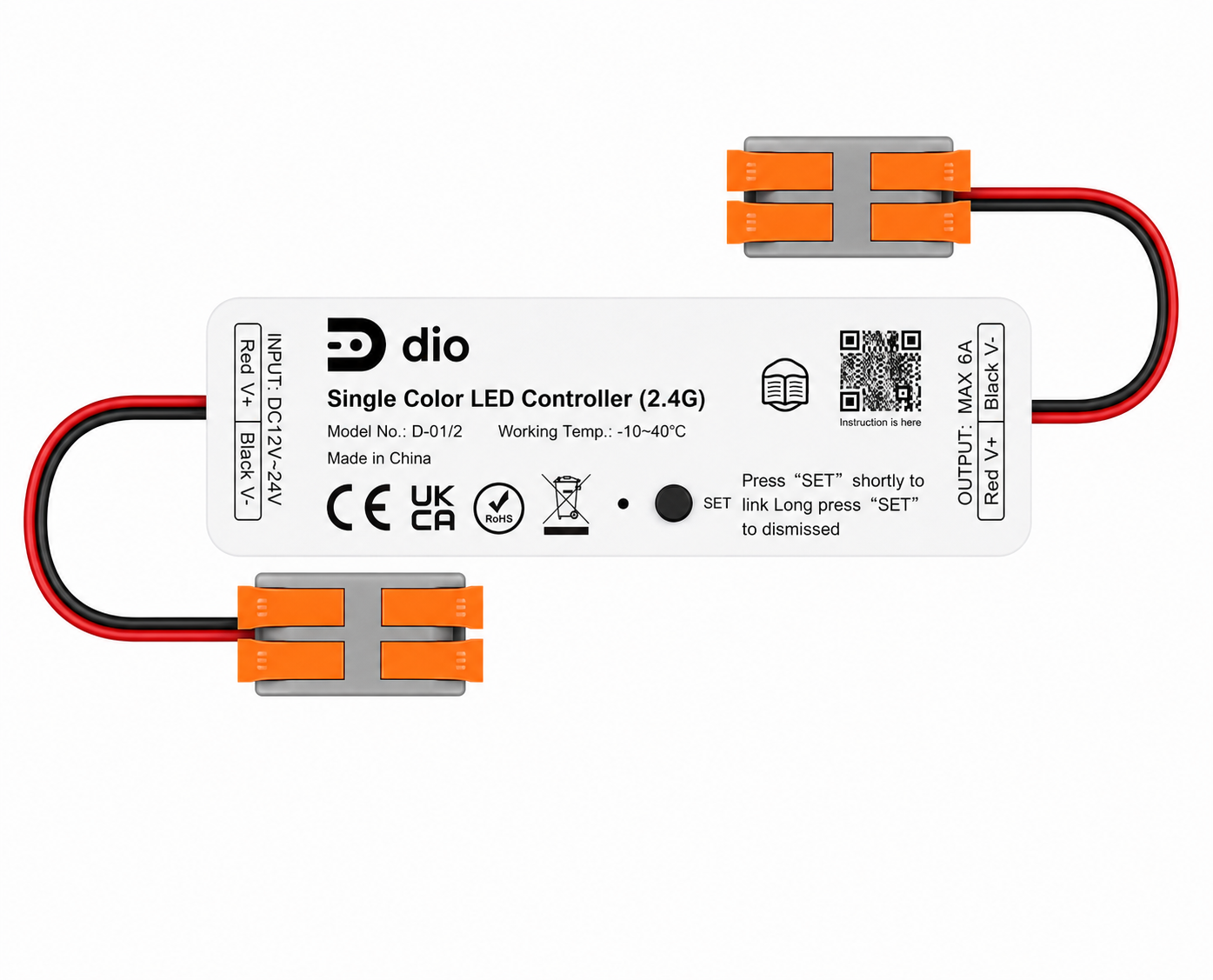

Controller MINI for 1-zone single color LED strip (ECO)
Code D-01 mini · Single colour controllers
- 12/24 V Voltage
- 72 W Power
- IP20 Ingress protection
- 5 years Warranty

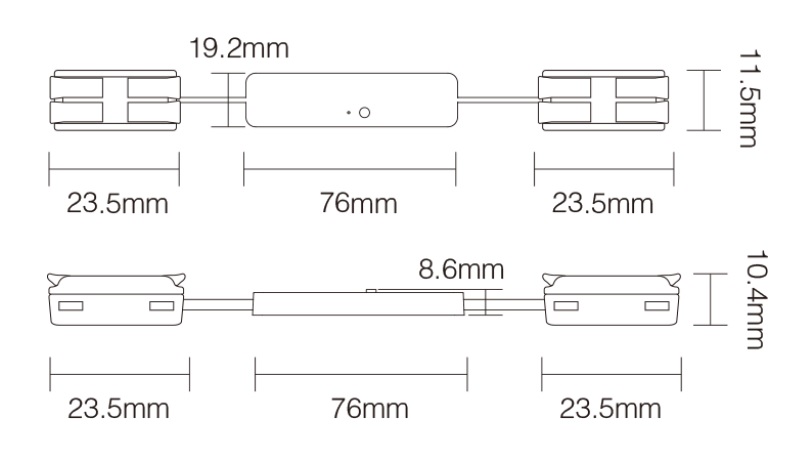

- 76 × 19.2 × 8.6 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 148 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Working distance
- 30m
- Power
- 72 W
- Voltage
- 12/24 V
- Input voltage
- DC 12–24 V
- Output current
- 6 A
- Max load
- 72 W @ 12 V, 144 W @ 24 V
- Output mode
- Single colour
- Control signal
- 2.4 GHz RF
- Dimming
- 4096 levels, 0.1–100 %, logarithmic
- Output type
- Constant voltage
Environment and compliance
- Ingress protection
- IP20
- Working temperature
- −10…+40 °C
- EMC standard
- ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-3 V2.1.1
- Safety standard (LVD)
- EN 61347-1:2015+A1:2021; EN 61347-2-11:2001+A1:2019
- Radio equipment (RED)
- ETSI EN 300 440 V2.2.1
- Certification
- CE (EMC, RED)
- Warranty
- 5 years
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
