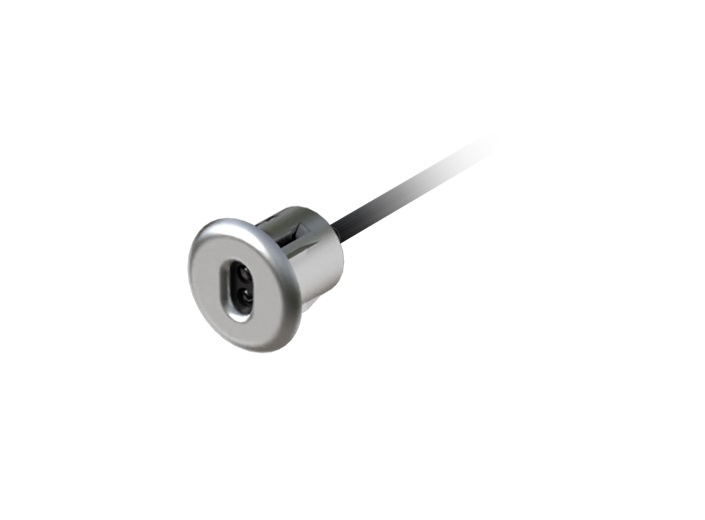

Hand movement sensor switch (recessed)
Code D-R1 · Sensor switches
- 12/24 V Voltage
- 30 W Power
Ask about this product
Technical datasheet (PDF, 111 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Voltage
- 12/24 V
- Power
- 30 W
Mechanical
- Mounting type
- recessed
- Colour
- Grey
- Sensor eye cable length
- 2000mm
Environment and compliance
- Operating principle
- from hand movement 2 - 60mm
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
