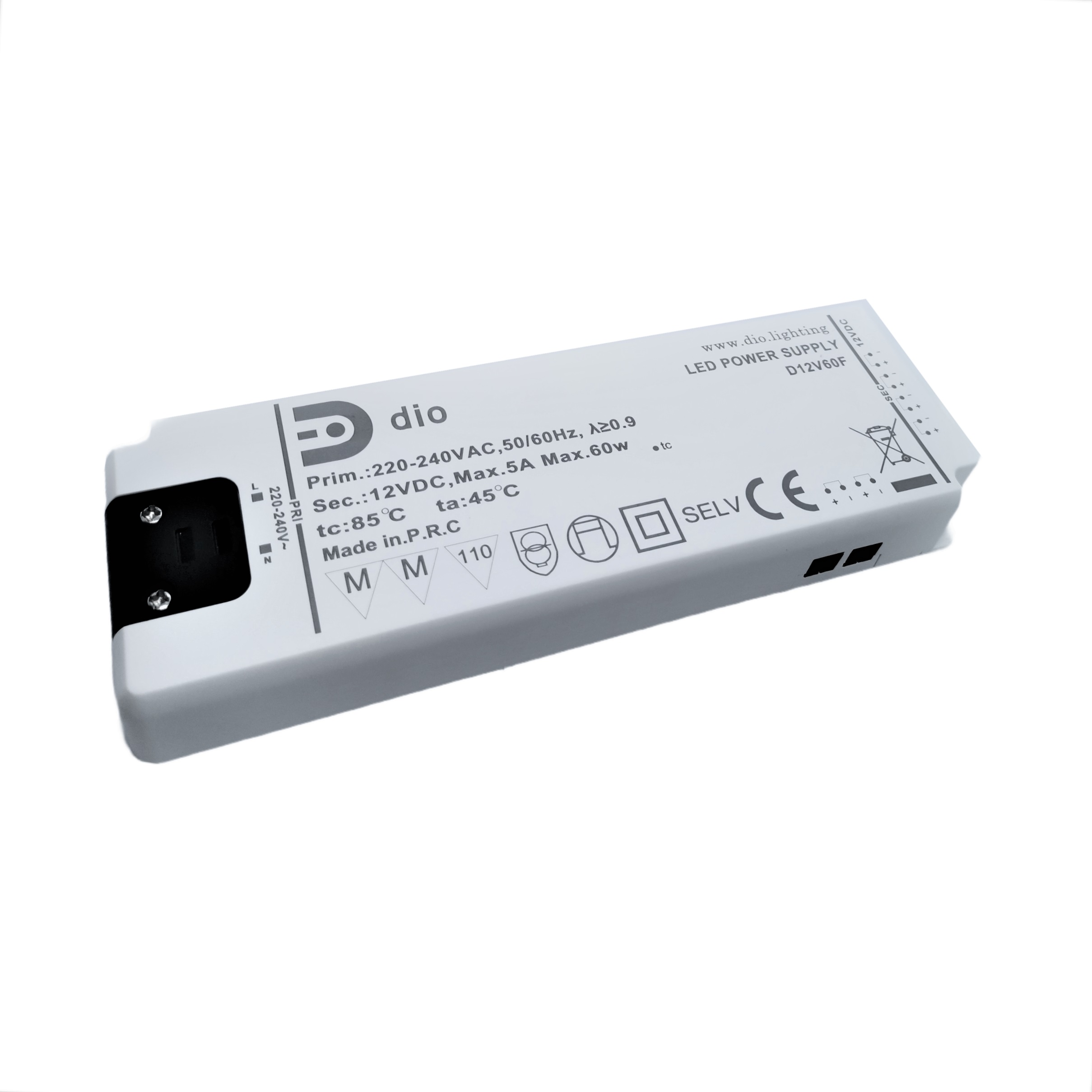

LED power supply 12V, 60W, Furniture
Code D12V60F · 12V power supplies
- 12 V Voltage
- 60 W Power
- IP20 Ingress protection
- 5 years Warranty

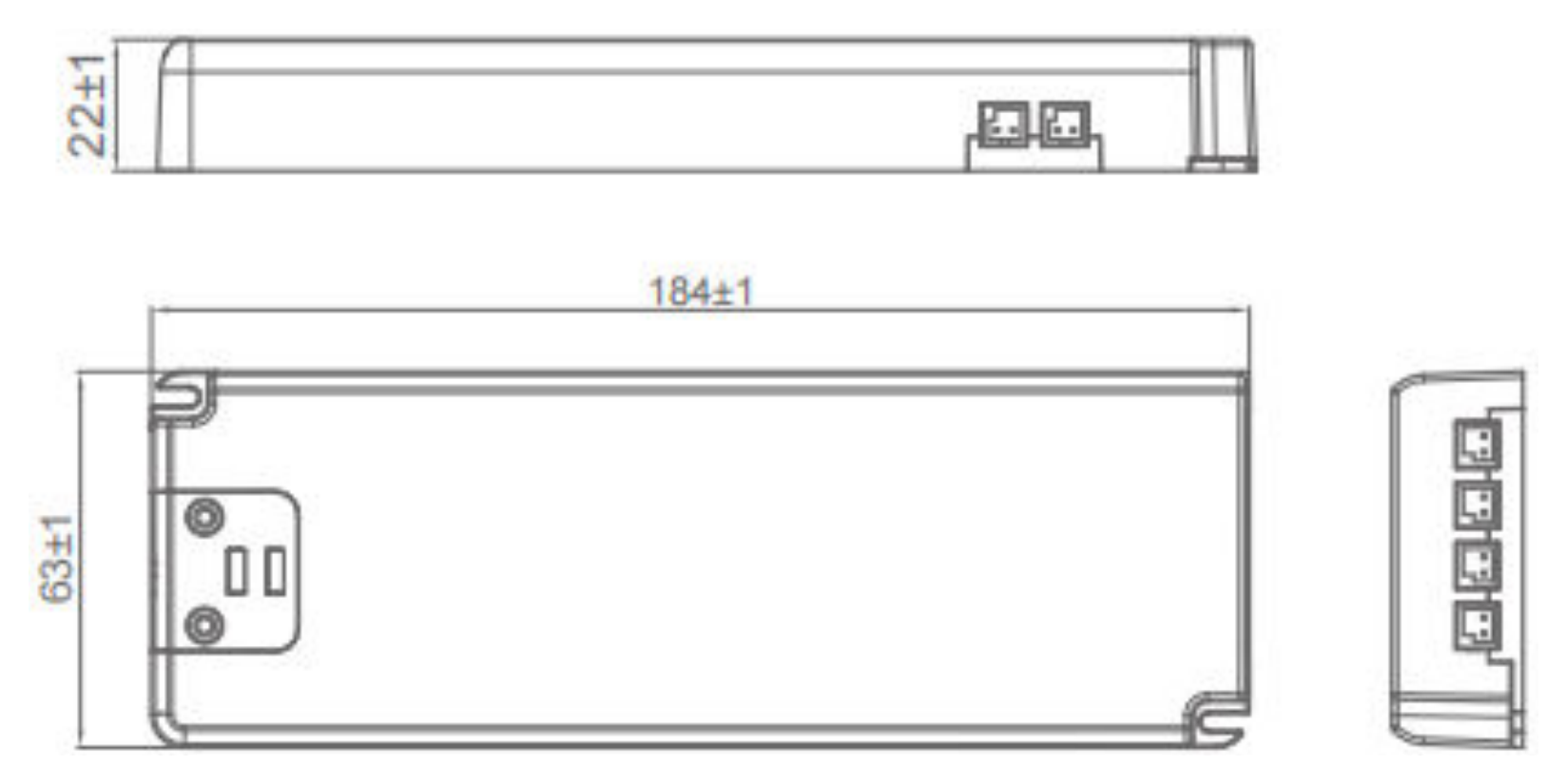

- 184 × 63 × 22 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 259 KB)
Datasheet (PDF)
Availability, pricing and lead times on request.
Specifications
Electrical
- Voltage
- 12 V
- Power
- 60 W
- Input voltage
- AC 220–240 V, 50/60 Hz
- Load range
- 0–60 W
- Rated output current
- 5 A
- Input current
- 0.5 A
- Power factor
- ≥ 0.9

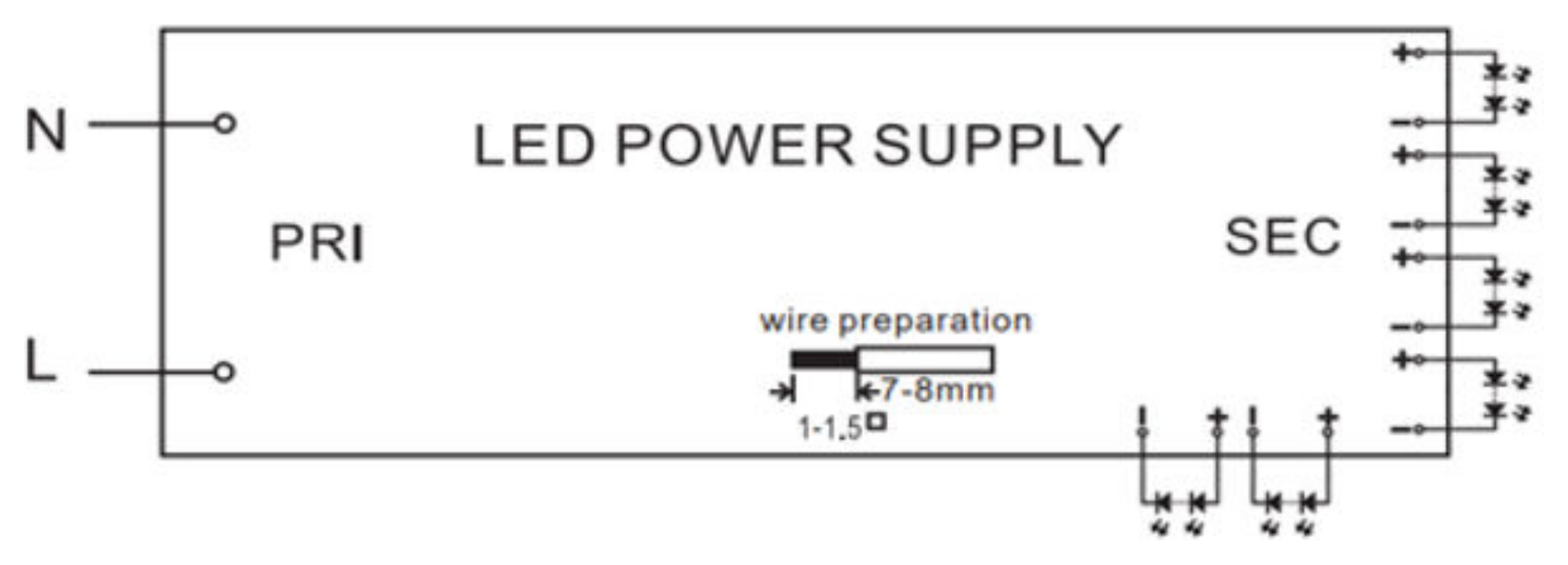

- Output connection
- Mini socket L815
Environment and compliance
- Ingress protection
- IP20
- Warranty
- 5 years
- Max ambient temperature (Ta)
- 45 °C
- Max case temperature (Tc)
- 80 °C
- Protections
- Short circuit, overload, overheat and open circuit; automatic reset
- Compliance standards
- EMC 2014/30/EU, LVD 2014/35/EU
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
