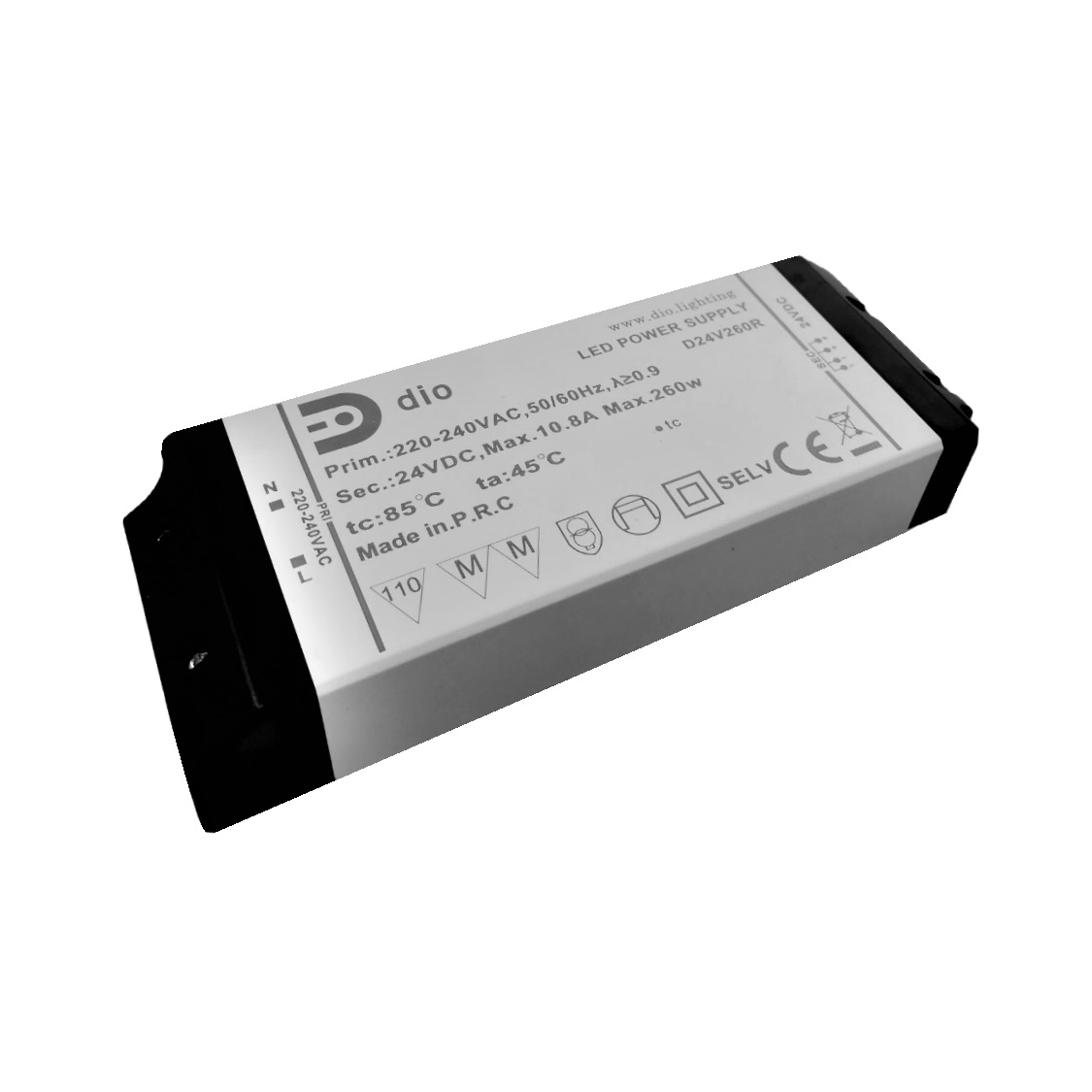

LED power supply 24V, 260W, Regular
Code D24V260R · 24V power supplies
- 24 V Voltage
- 260 W Power
- IP20 Ingress protection
- 5 years Warranty

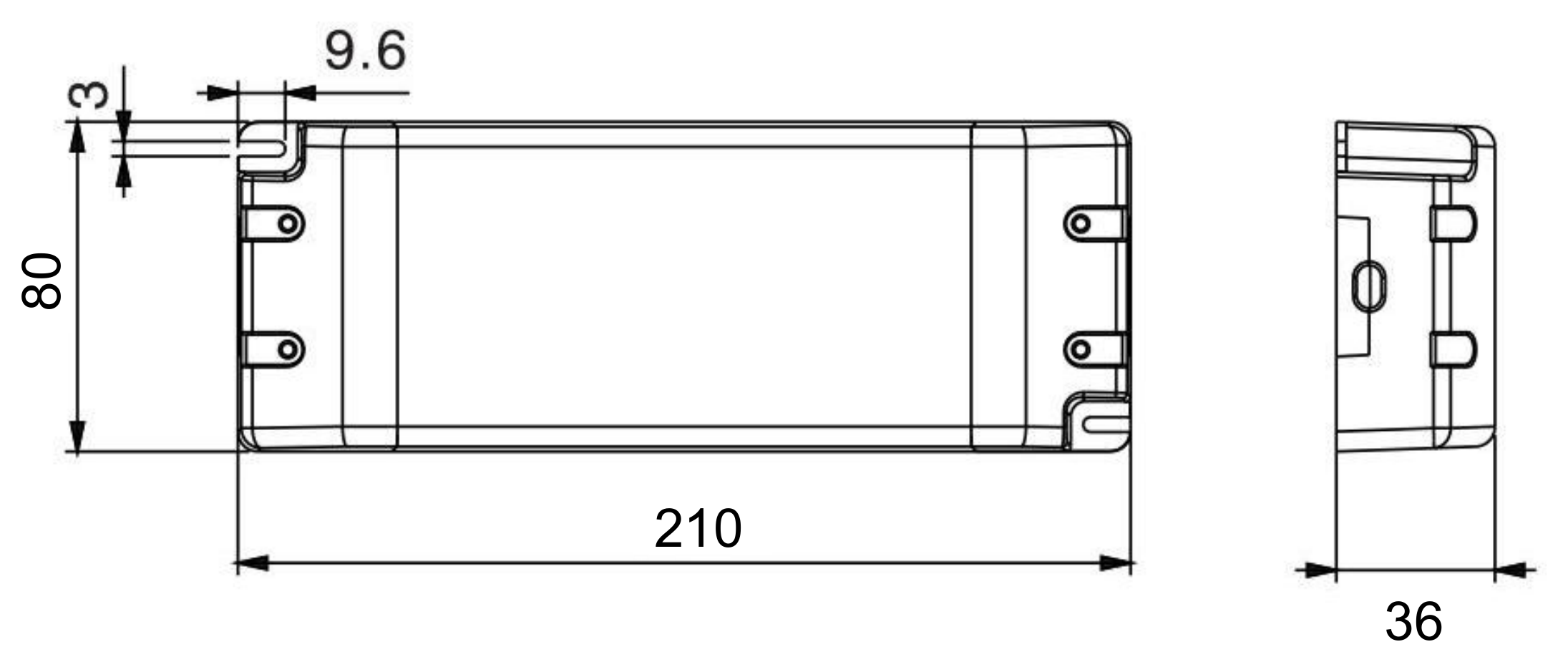

- 210 × 80 × 36 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 266 KB)
Datasheet (PDF)
Availability, pricing and lead times on request.
Specifications
Electrical
- Voltage
- 24 V
- Power
- 260 W
- Input voltage
- AC 220–240 V, 50/60 Hz
- Load range
- 0–260 W
- Rated output current
- 10.8 A
- Input current
- 2.5 A
- Power factor
- ≥ 0.9

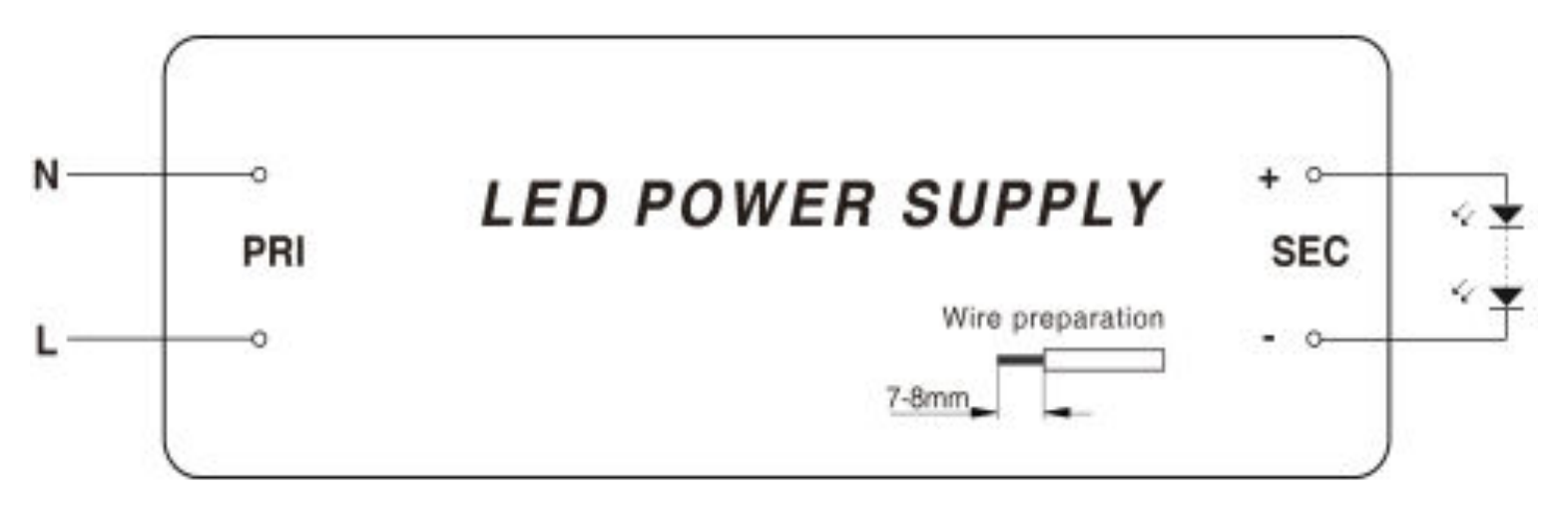

- Output connection
- Cable H03VVH2-F 2×0.75 mm²
Environment and compliance
- Ingress protection
- IP20
- Warranty
- 5 years
- Max ambient temperature (Ta)
- 45 °C
- Max case temperature (Tc)
- 80 °C
- Protections
- Short circuit, overload, overheat and open circuit; automatic reset
- Compliance standards
- EMC 2014/30/EU, LVD 2014/35/EU
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
