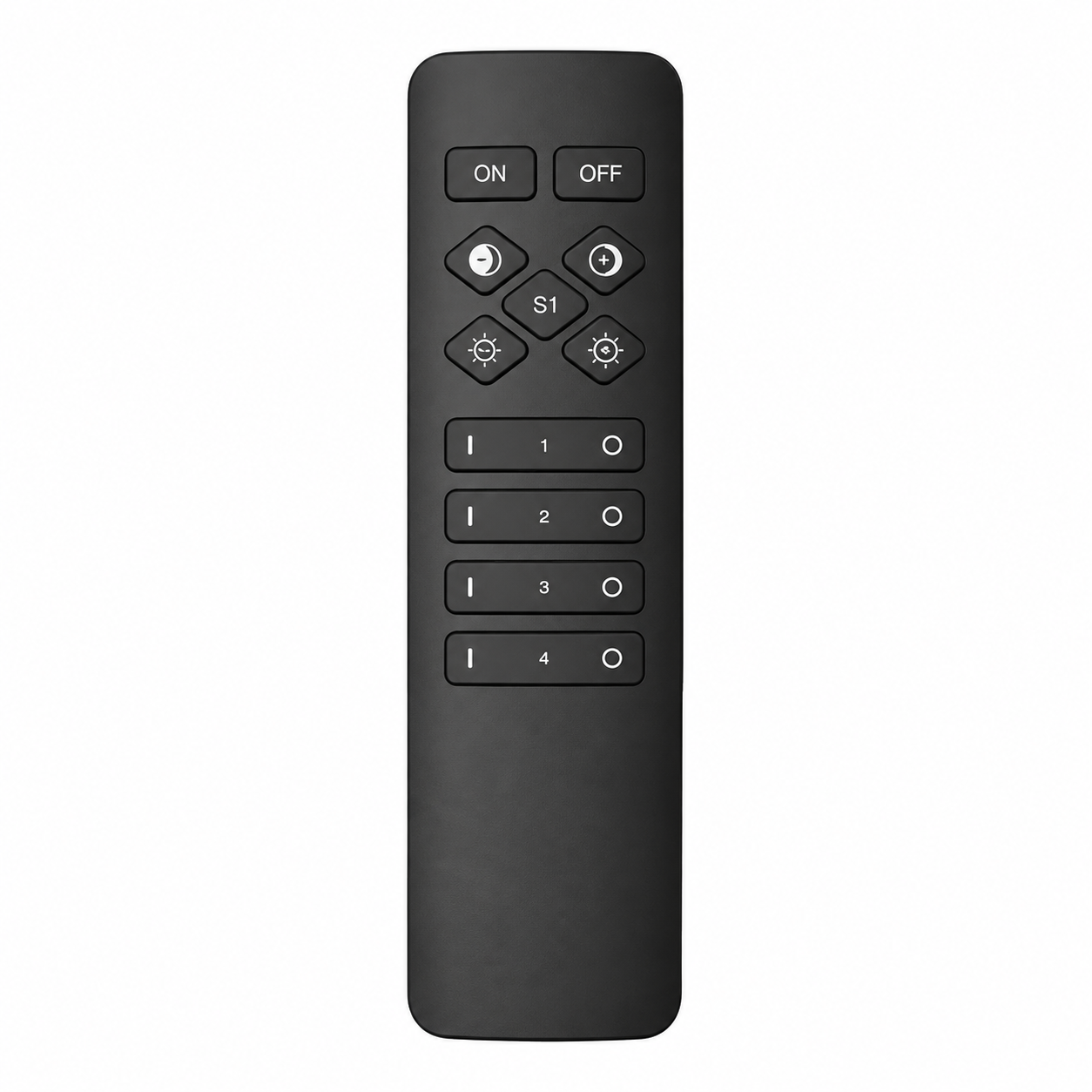

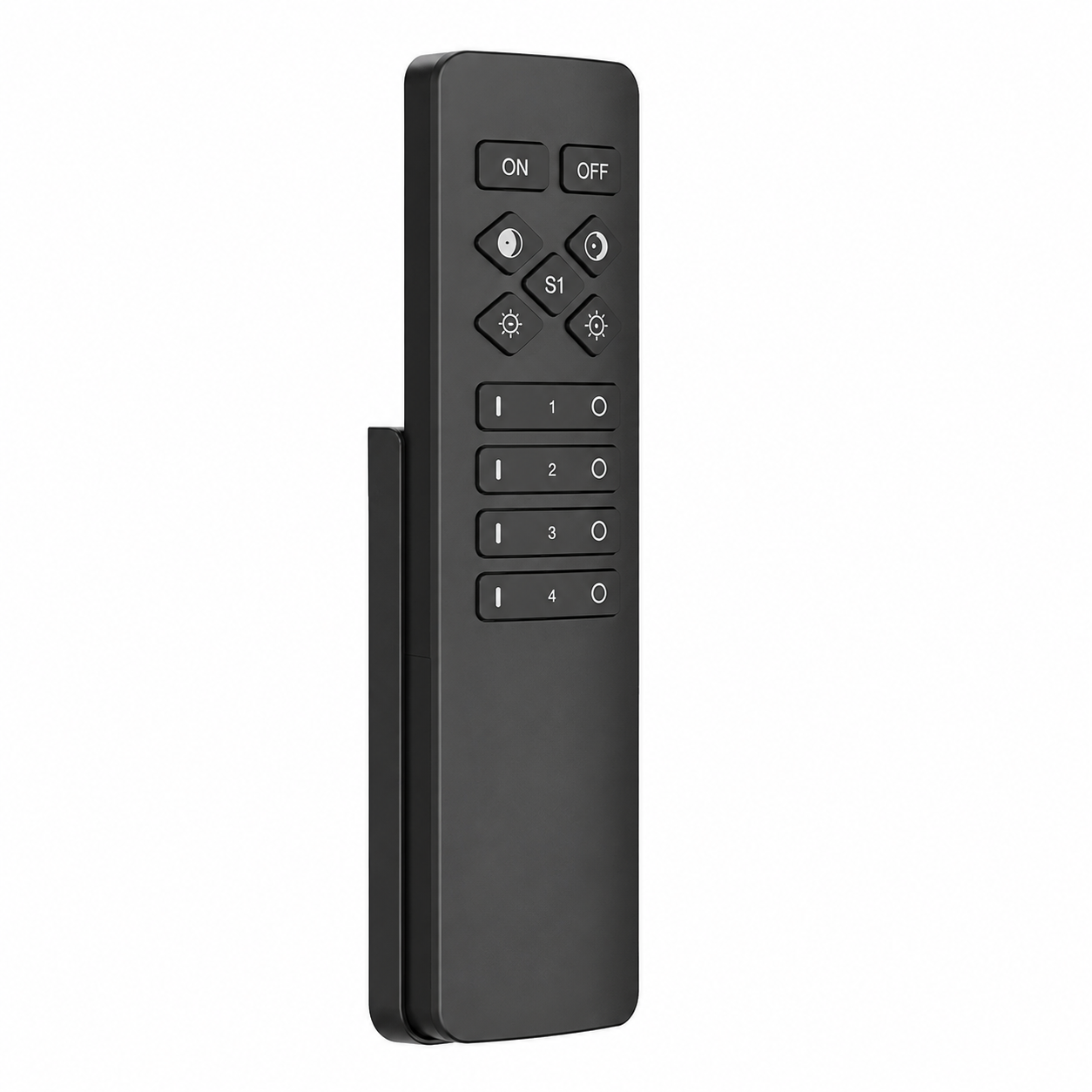

Remote control 4 zones for single color / CCT LED strip (ECO)
Code D-24j · Single colour controllers
- 5 years Warranty
Ask about this product
Technical datasheet (PDF, 90 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Output mode
- Single colour or CCT
- Control signal
- 2.4 GHz RF
- Zones
- 4
- Battery
- 2 × AAA (3 V)
- Working distance
- 30m
- Standby power consumption
- 5 µA
- Transmitting power
- 6 dBm
- Transmission frequency
- 2400–2483.5 MHz
- Modulation
- GFSK
Environment and compliance
- Working temperature
- −10…+40 °C
- Warranty
- 5 years
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
