New
Remote control for 1-zone single color / CCT strip (EKO)
Code D-21j · CCT controllers
- 5 years Warranty

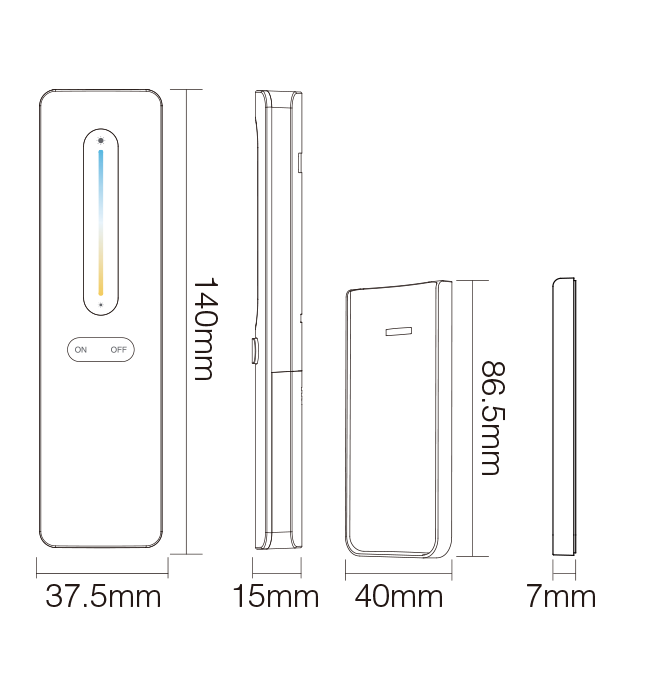

- 140 × 37.5 × 15 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 130 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Output mode
- Single colour or CCT
- Control signal
- 2.4 GHz RF
- Zones
- 1
- Battery
- 2 × AAA (3 V)
- Working distance
- 30m
- Standby power consumption
- 15 µA
- Transmitting power
- 6 dBm
- Modulation
- GFSK
Environment and compliance
- Working temperature
- −10…+40 °C
- EMC standard
- ETSI EN 301 489-1 V2.2.3 (2019-11); ETSI EN 301 489-3 V2.3.2 (2023-01)
- Safety standard (LVD)
- EN 61347-2-11:2001+A1:2019; EN 61347-1:2015+A1:2021; EN 62493:2015+A1:2022
- Radio equipment (RED)
- ETSI EN 300 440 V2.2.1 (2018-07)
- Certification
- CE (EMC, RED)
- Warranty
- 5 years
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
