New

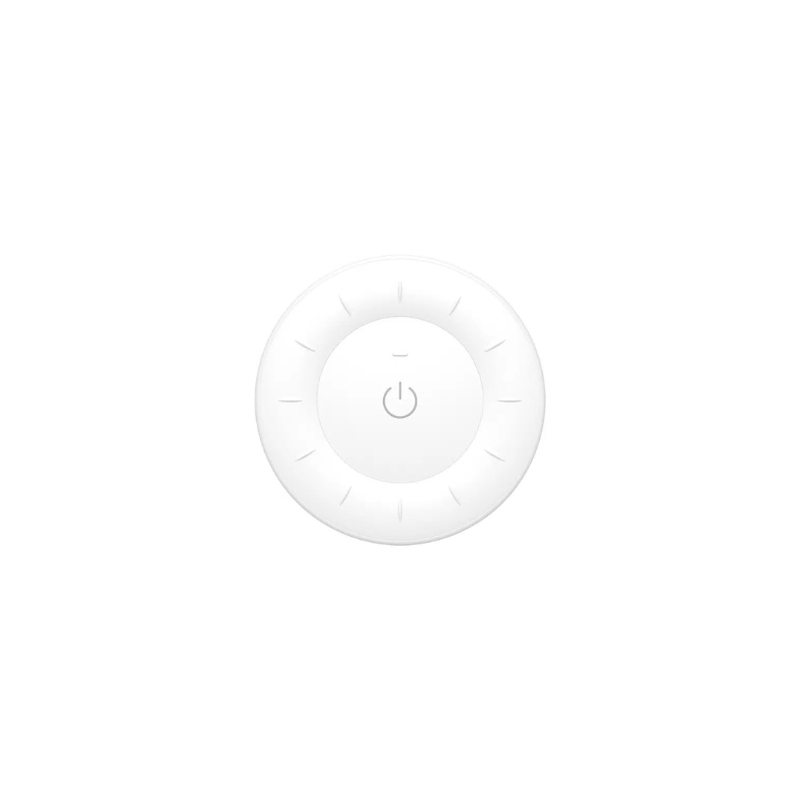

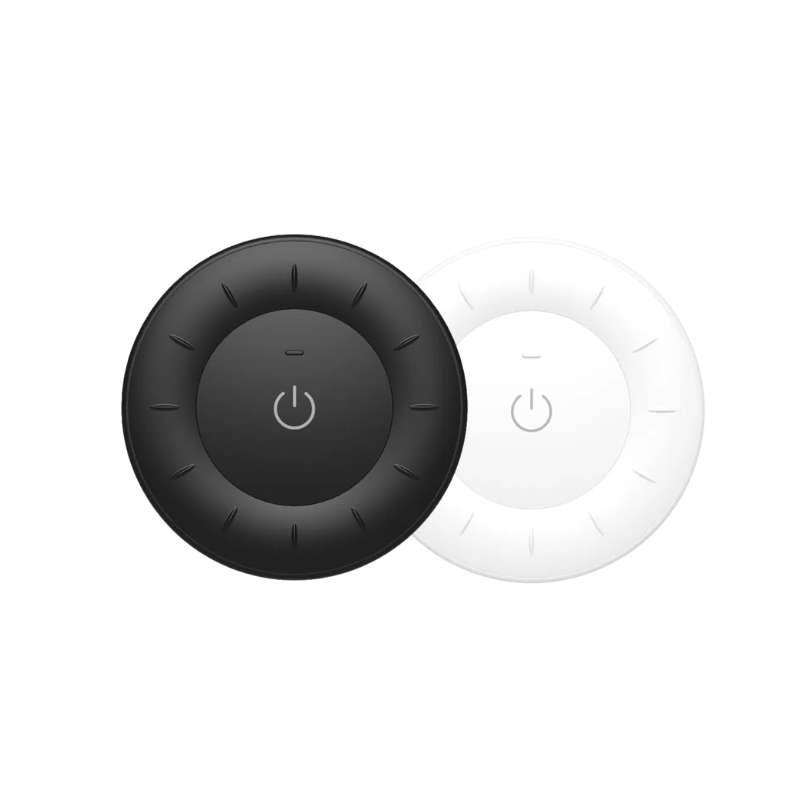

Switch MINI for 1-zone single color LED strip (ECO), black
Code D-11 · Single colour controllers
- IP20 Ingress protection
- 5 years Warranty

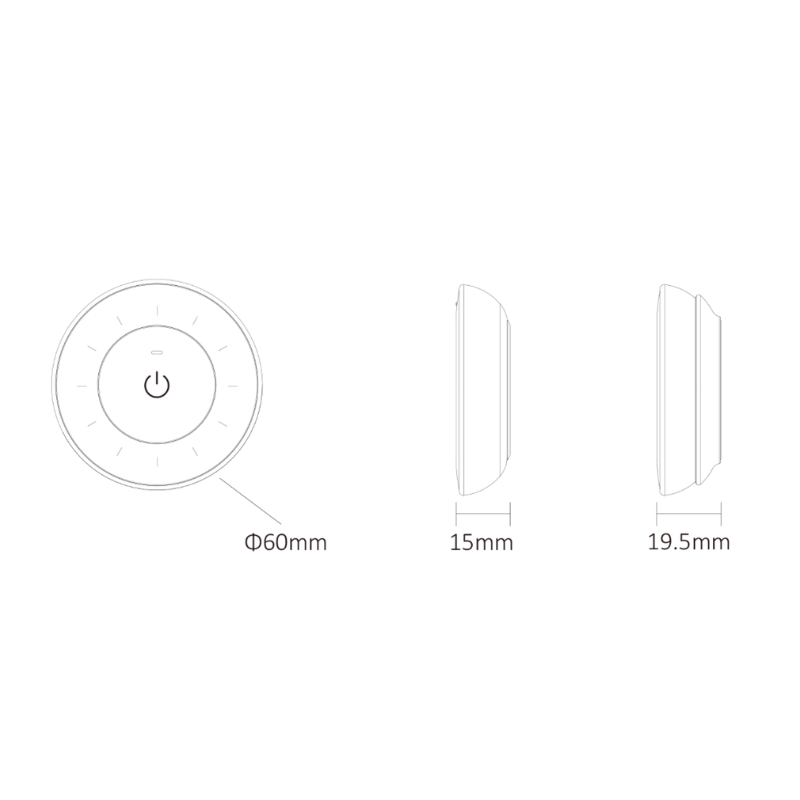

- 86 × 86 × 27 L × W × H, mm
Ask about this product
Technical datasheet (PDF, 133 KB)
Availability, pricing and lead times on request.
Specifications
Electrical
- Working distance
- 30m
- Output mode
- Single colour
- Control signal
- 2.4 GHz RF
- Zones
- 1
- Battery
- CR2032 (3 V)
- Standby power consumption
- 6 µA
- Transmitting power
- 6 dBm
- Transmission frequency
- 2400–2483.5 MHz
- Modulation
- GFSK
Mechanical
- Colour
- Black
Environment and compliance
- Operating principle
- on/off. Dim
- Ingress protection
- IP20
- Working temperature
- −10…+40 °C
- Warranty
- 5 years
Values as published by DIO. Where a datasheet is attached it is the reference; specifications may change without notice.
