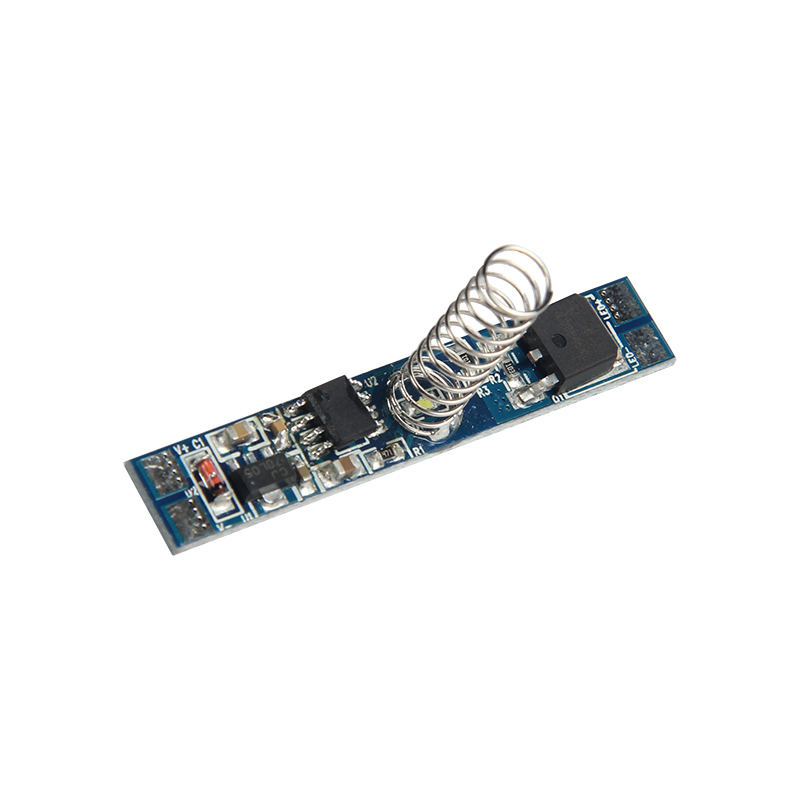

0V Memory Touch Switch Dimmer

Functions

• Switches on and off with dimming; the brightness is remembered and restored within 3 seconds.
• Input and output 12–24 V DC, 8 A: about 96 W at 12 V and 192 W at 24 V.

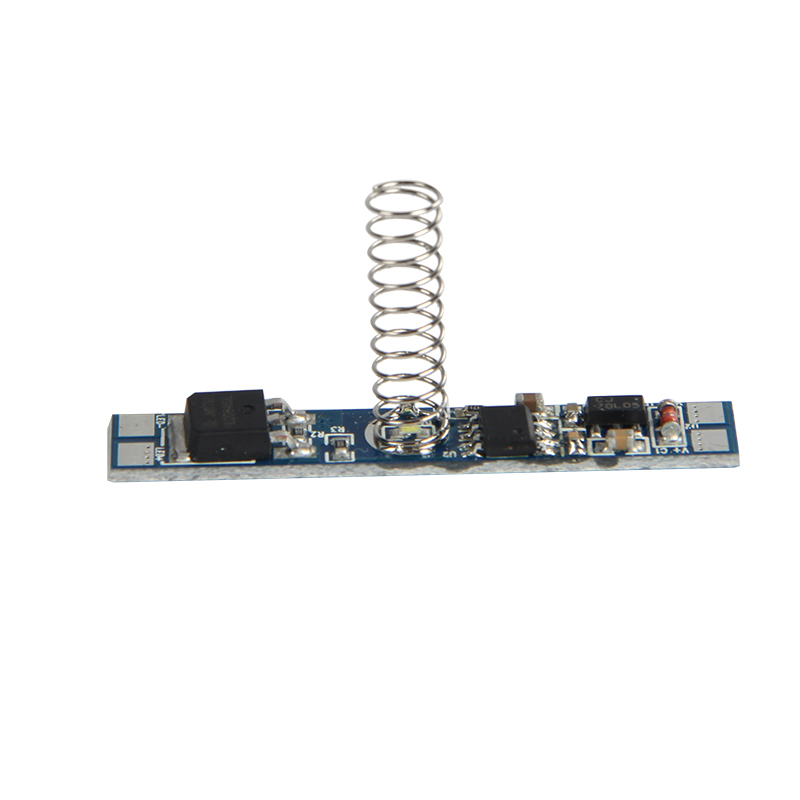

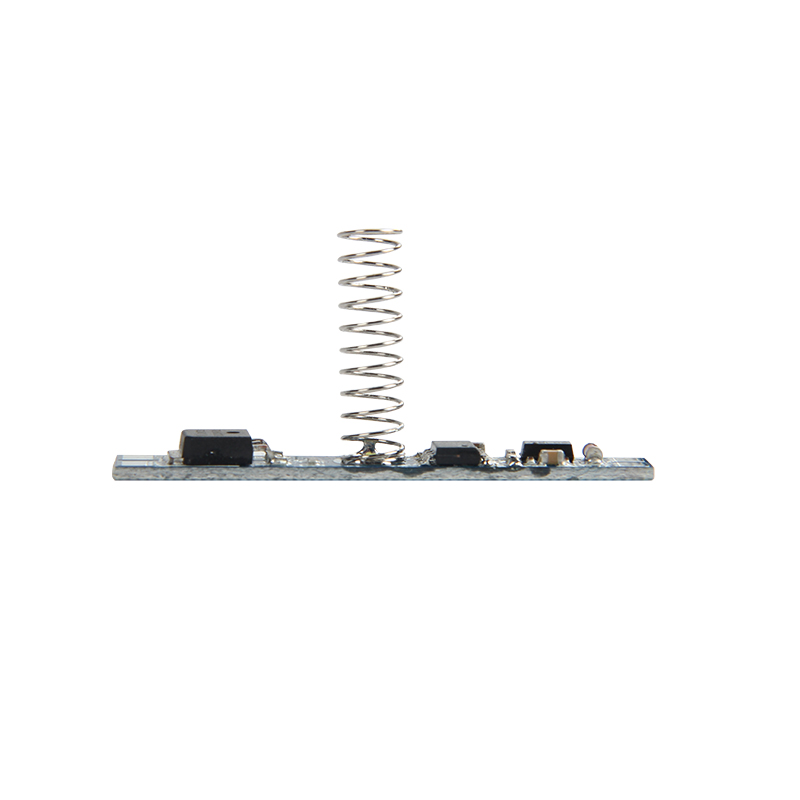

• Spring height 12 mm.

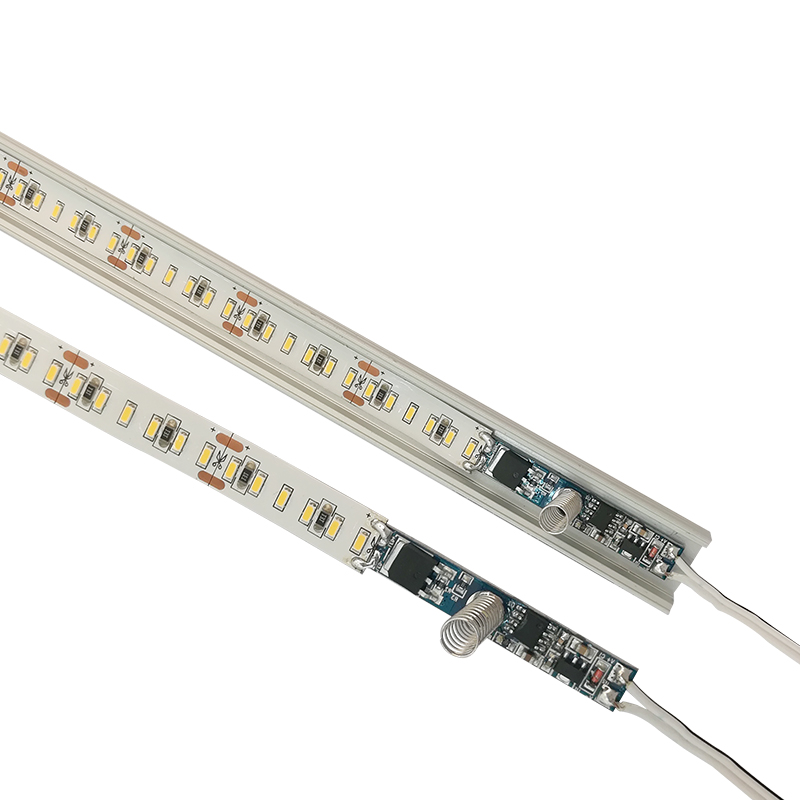

• Connections: V+ and V− input, LED+ and LED− output to the strip.

Operation

• The conductive spring must be covered by an insulating material such as glass, plastic or ceramic, up to 3 mm thick.
• Off when the power is first connected.
• A quick touch (under 550 ms) switches the light on or off with a 3-second brightness ramp; the light comes on at 90 % brightness.
• Holding the touch (over 550 ms) dims up or down continuously.
• Quick touches and holds can be combined at any time; the dimming level is memorised.
